# Understanding Air Operated Knife Gate Valves: Functionality, Applications, and Benefits
### Introduction
In the world of industrial valve technology, air operated knife gate valves play a pivotal role in controlling the flow of materials in various processes. These valves are designed to handle slurries, powders, and other viscous materials, making them essential components in industries such as mining, wastewater treatment, and food processing. This article delves into the functionality, applications, and benefits of air operated knife gate valves, providing insights into why they are a preferred choice in many settings.
### What is an Air Operated Knife Gate Valve?

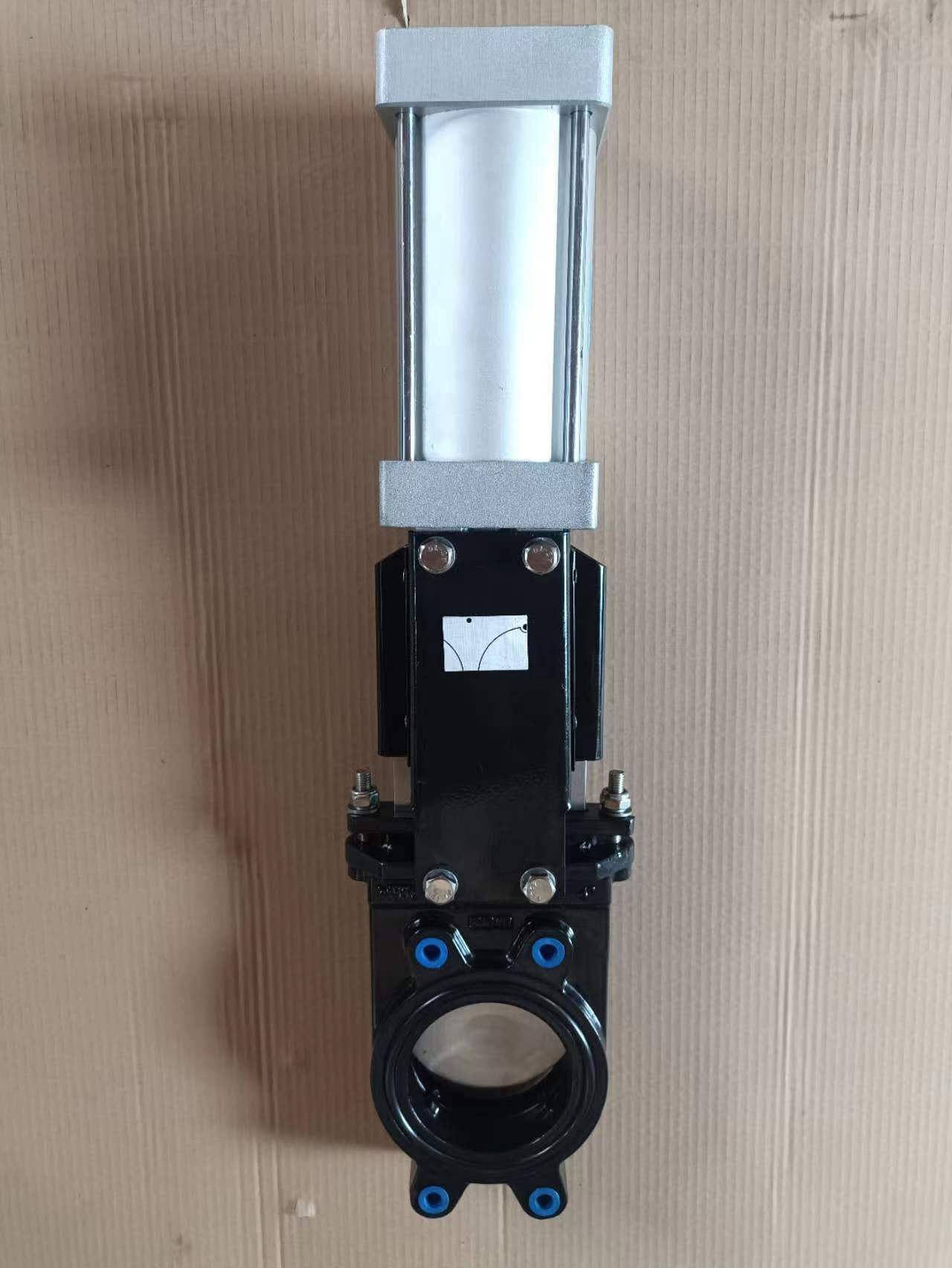

An air operated knife gate valve is a type of valve that uses pneumatic power to open and close a gate-like blade that slices through the material in the flow path. The design features a flat gate that is raised or lowered by a pneumatic actuator, allowing for quick and efficient flow control. These valves can be used in both on/off and throttling applications, depending on the specific requirements of the process.
### Structure and Components
The key components of an air operated knife gate valve include:
1. **Body**: Typically made of durable materials like stainless steel, cast iron, or plastic, the body houses the internal mechanisms and withstands the pressure and flow of the medium.
2. **Gate**: The knife-like blade that cuts through the material, ensuring a tight seal when closed.
3. **Actuator**: A pneumatic actuator powered by compressed air that provides the force needed to raise or lower the gate.
4. **Seals**: These components prevent leakage and ensure that the valve functions efficiently over time.
5. **Control System**: Often integrated with sensors and controllers, the control system facilitates remote operation and automation of the valve.
### How Do Air Operated Knife Gate Valves Work?
Air operated knife gate valves function through a simple yet effective mechanism. When the actuator receives a signal (either manually or automatically), it releases compressed air that drives the gate upwards, allowing material to flow through. Conversely, when the actuator is deactivated, the gate is pushed down to close the valve, effectively stopping the flow.
This design allows for rapid response times, making air operated knife gate valves ideal for processes that require quick adjustments to flow rates.
### Applications of Air Operated Knife Gate Valves
Air operated knife gate valves are versatile and can be found in a variety of industries, including:
1. **Wastewater Treatment**: Used to control the flow of sludge and other wastewater materials, ensuring efficient treatment processes.
2. **Mining**: Essential for handling abrasive slurries and tailings, providing reliable flow control in harsh conditions.
3. **Food Processing**: Employed in the handling of bulk solids and liquids, these valves ensure hygienic and safe operation.
4. **Pulp and Paper**: Used in the transport of pulp and other fibrous materials, helping to maintain production efficiency.
5. **Chemical Manufacturing**: Ideal for corrosive and viscous materials, these valves provide a robust solution for various chemical processes.
### Benefits of Air Operated Knife Gate Valves
1. **Efficiency**: The pneumatic operation allows for quick opening and closing, which contributes to smoother process flows.
2. **Durability**: Constructed from robust materials, these valves are designed to withstand extreme conditions, including high pressure and corrosive environments.
3. **Space-Saving Design**: The compact nature of knife gate valves allows for installation in tight spaces, making them ideal for various setups.
4. **Low Maintenance**: With fewer moving parts compared to other valve types, air operated knife gate valves require less maintenance and offer a longer service life.
5. **Automation Compatibility**: These valves can easily integrate with automated systems, allowing for remote operation and enhanced process control.
### Conclusion
Air operated knife gate valves are indispensable in many industrial applications, providing effective flow control for a range of materials. Their unique design, coupled with the benefits of pneumatic operation, makes them a go-to solution for industries that require efficiency, durability, and reliability. As industries continue to evolve, the demand for advanced valve solutions like air operated knife gate valves will only increase, solidifying their role as a cornerstone of modern industrial processes.
An air-operated knife gate valve is a specialized type of valve designed to control the flow of liquids, slurries, or gases in various industrial applications. Its primary feature is a sharp-edged gate that slices through the medium, providing a tight seal when closed and minimizing leakage. The valve is actuated by compressed air, offering rapid opening and closing capabilities, which enhances process efficiency. These valves are particularly useful in handling viscous or abrasive materials, as the design prevents clogging and promotes smooth operation. Additionally, air-operated knife gate valves are often constructed with durable materials to withstand harsh environments, making them ideal for use in wastewater treatment, mining, and pulp and paper industries. Their reliability and ease of maintenance contribute to their widespread adoption in modern industrial systems.
