Through Conduit Knife Gate Valve

Size Range:	DN50~600mm NPS 2”-24” （Larger size on reques）
Max Working Press.：	DN50~DN250: 10Bar NPS2~NPS10：150Psi DN300~DN450: 7Bar NPS12~NPS18：90Psi DN500~DN600: 4Bar NPS20~NPS24：60Psi
Temp. Range：	-29…+800℃
Seal Tightness：	According to MSS SP-81
Body Material：	Carbon Steel, Stainless Steel, Special Alloy
Gate Material:	Stainless Steel, Special Alloy
Seat Material:	Stainless Steel+STL EPDM (120°C) /Viton(200°C)/PTFE(200°C) /NBR(90°C)
Face to Face:	MSS SP-81
Flange Standard:	GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.5, EN1092-1
Appliction:	Pulp & Paper, Water Treatment, Beverage & Food, Fine Chemical, Power Plant, Steel Industry, etc.

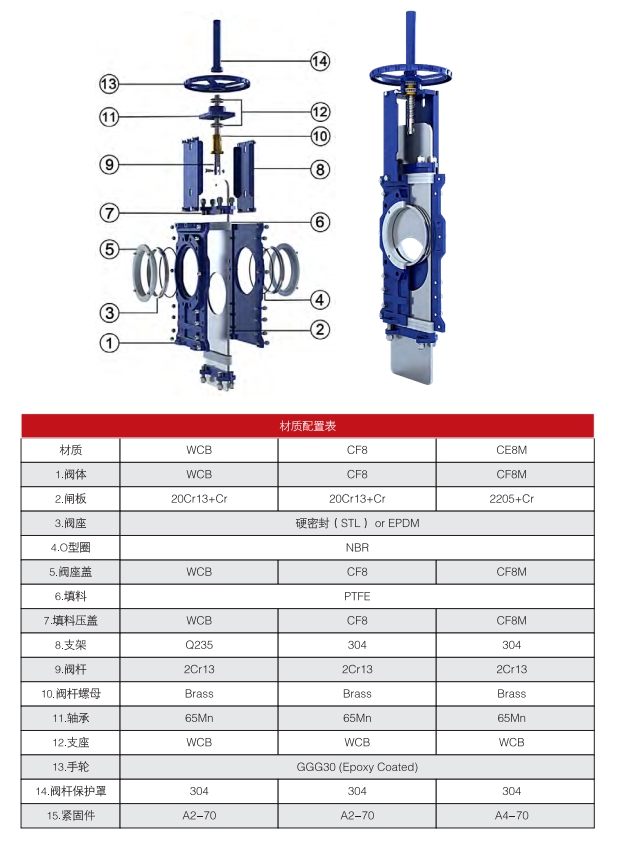

Through Conduit Knife Gate Valve 01

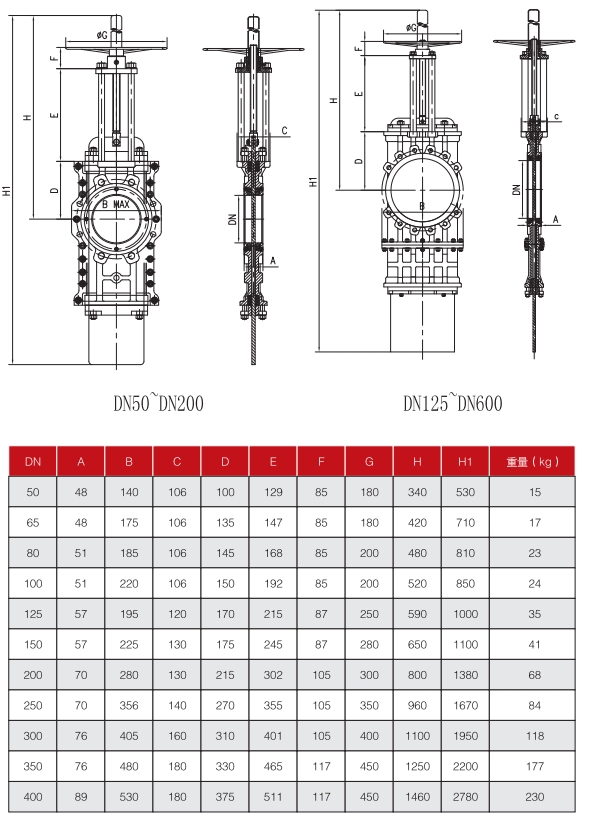

Through Conduit Knife Gate Valve 02

Through Conduit Knife Gate Valve 03

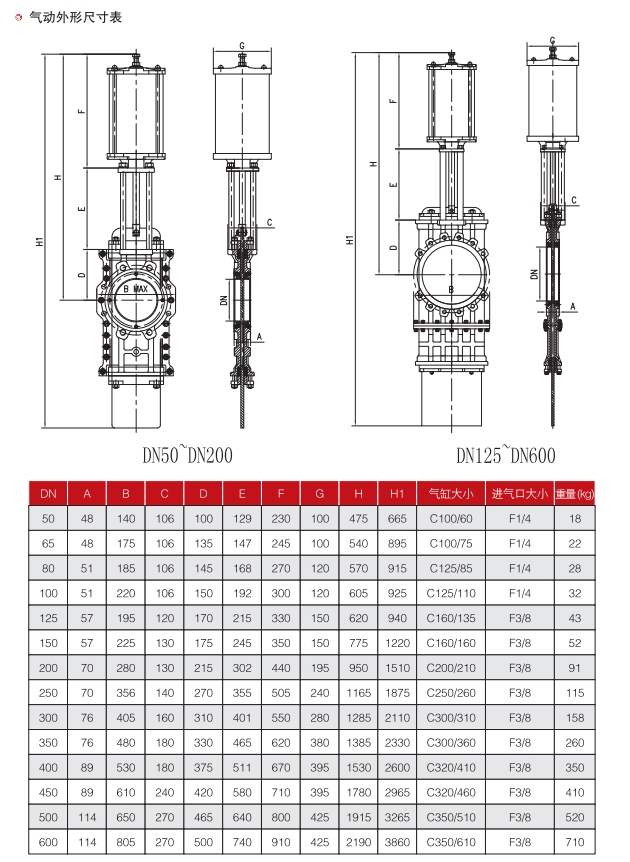

Through Conduit Knife Gate Valve 04

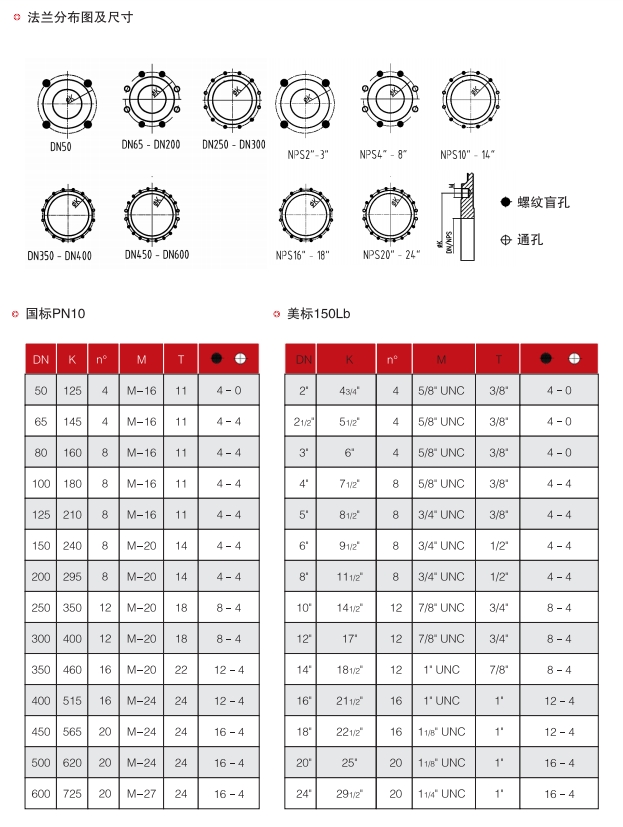

Through Conduit Knife Gate Valve 05
