Browse KGV knife gate valve configurations by construction, flow direction, lining/material and operator options. Pressure/class data are not specified in the supplied catalog and should be confirmed on quotation.
Non-Rising Bidirectional Knife Gate Valve from WENZHOU KGV VALVE CO., LTD. Non-rising bidirectional knife gate valve with compact construction and dimensions for DN50–DN450.

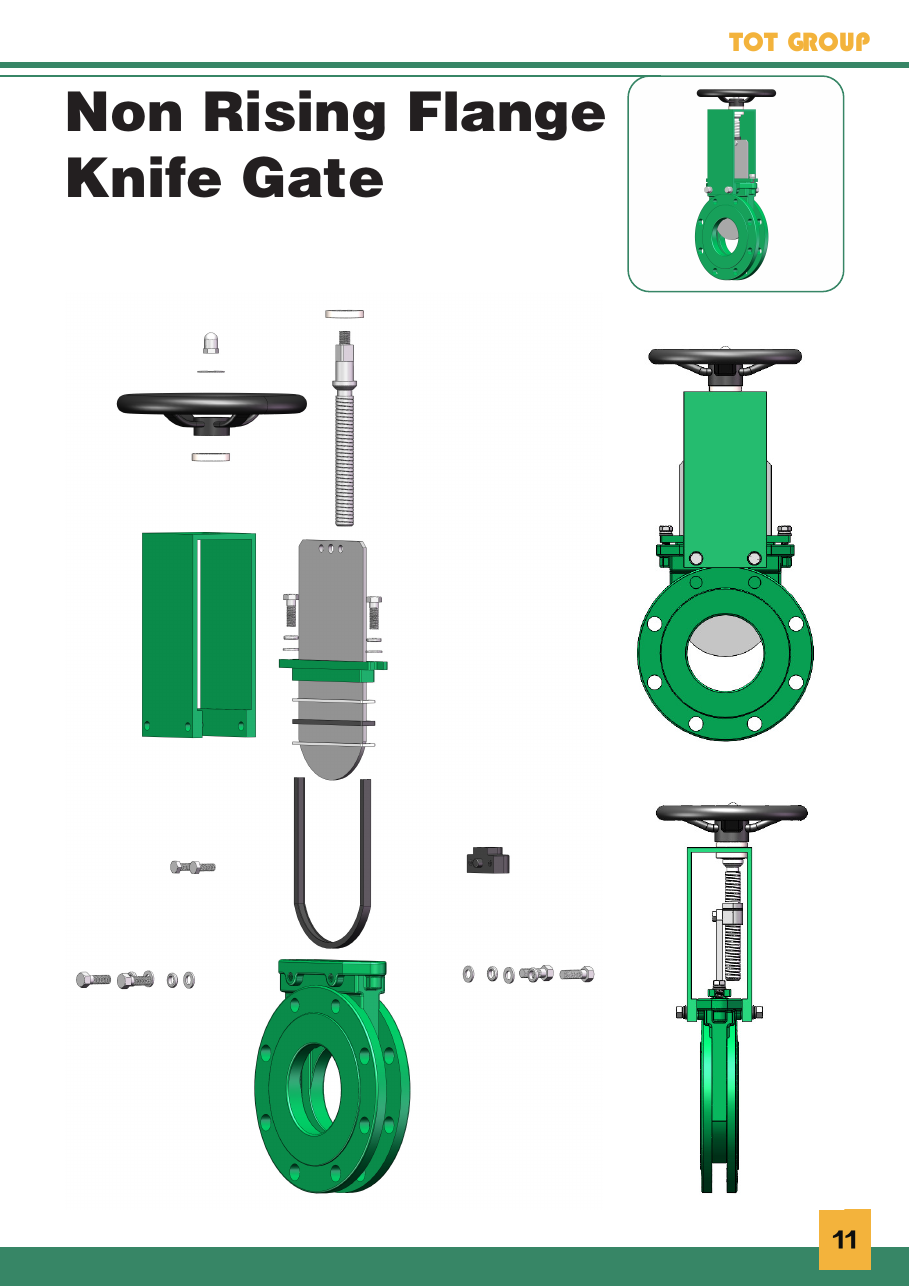

Non-Rising Flange Knife Gate from WENZHOU KGV VALVE CO., LTD. Non-rising flange knife gate valve configuration from the KGV catalog.
Non-Rising Knife Gate Valve from WENZHOU KGV VALVE CO., LTD. Compact non-rising stem knife gate valve for applications where overall valve height is important.

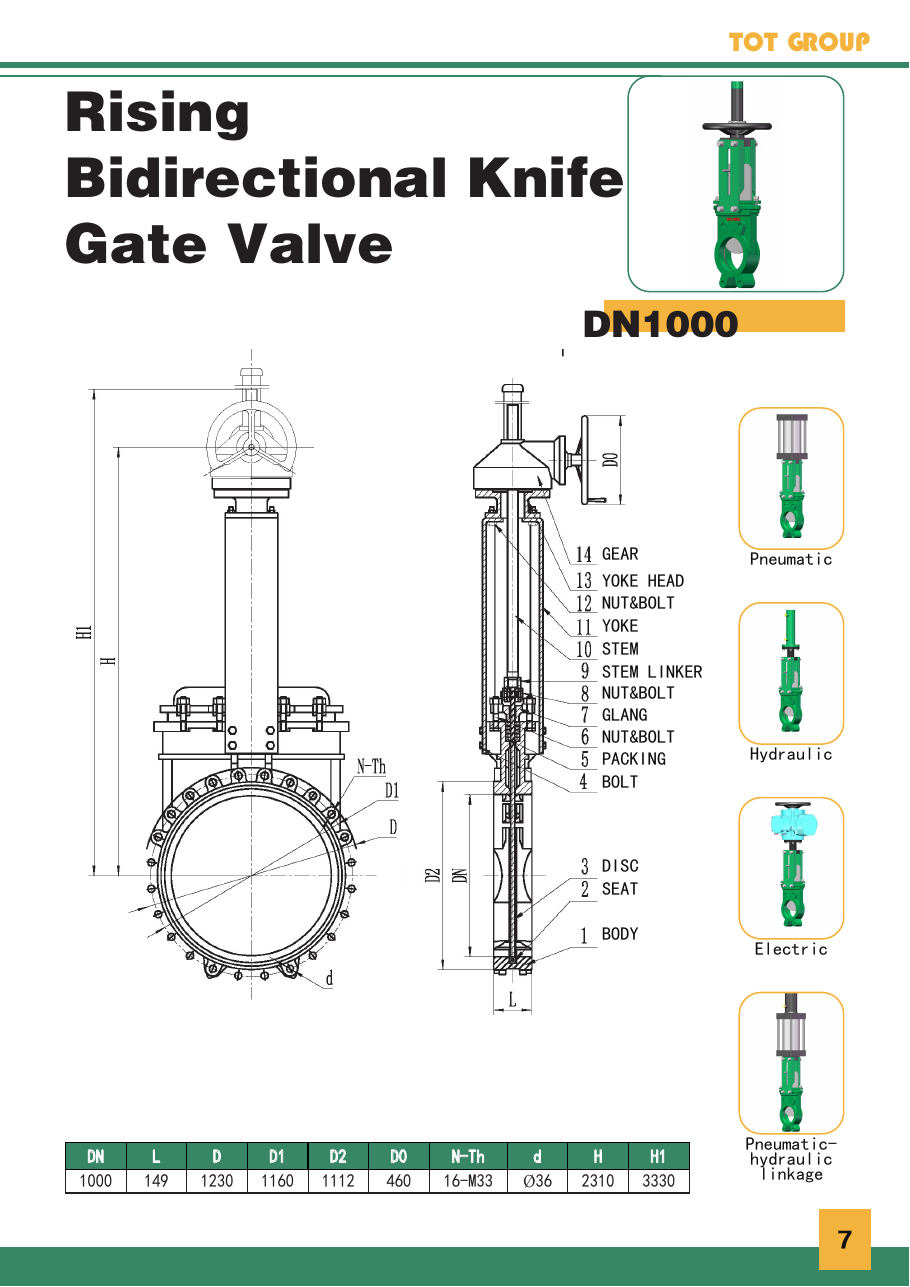

DN1000 Rising Bidirectional Knife Gate Valve from WENZHOU KGV VALVE CO., LTD. Large-diameter DN1000 rising bidirectional knife gate valve configuration for high-capacity process lines.
DN800 Rising Bidirectional Knife Gate Valve from WENZHOU KGV VALVE CO., LTD. Large-diameter DN800 rising bidirectional knife gate valve with bevel gear, sprocket and lever options shown in the catalog.
SS Rising Bidirectional Knife Gate Valve from WENZHOU KGV VALVE CO., LTD. Stainless-steel rising bidirectional knife gate valve for demanding industrial isolation service.
Rising Bidirectional Knife Gate Valve from WENZHOU KGV VALVE CO., LTD. Rising stem bidirectional knife gate valve for isolation where flow may be handled from either direction.

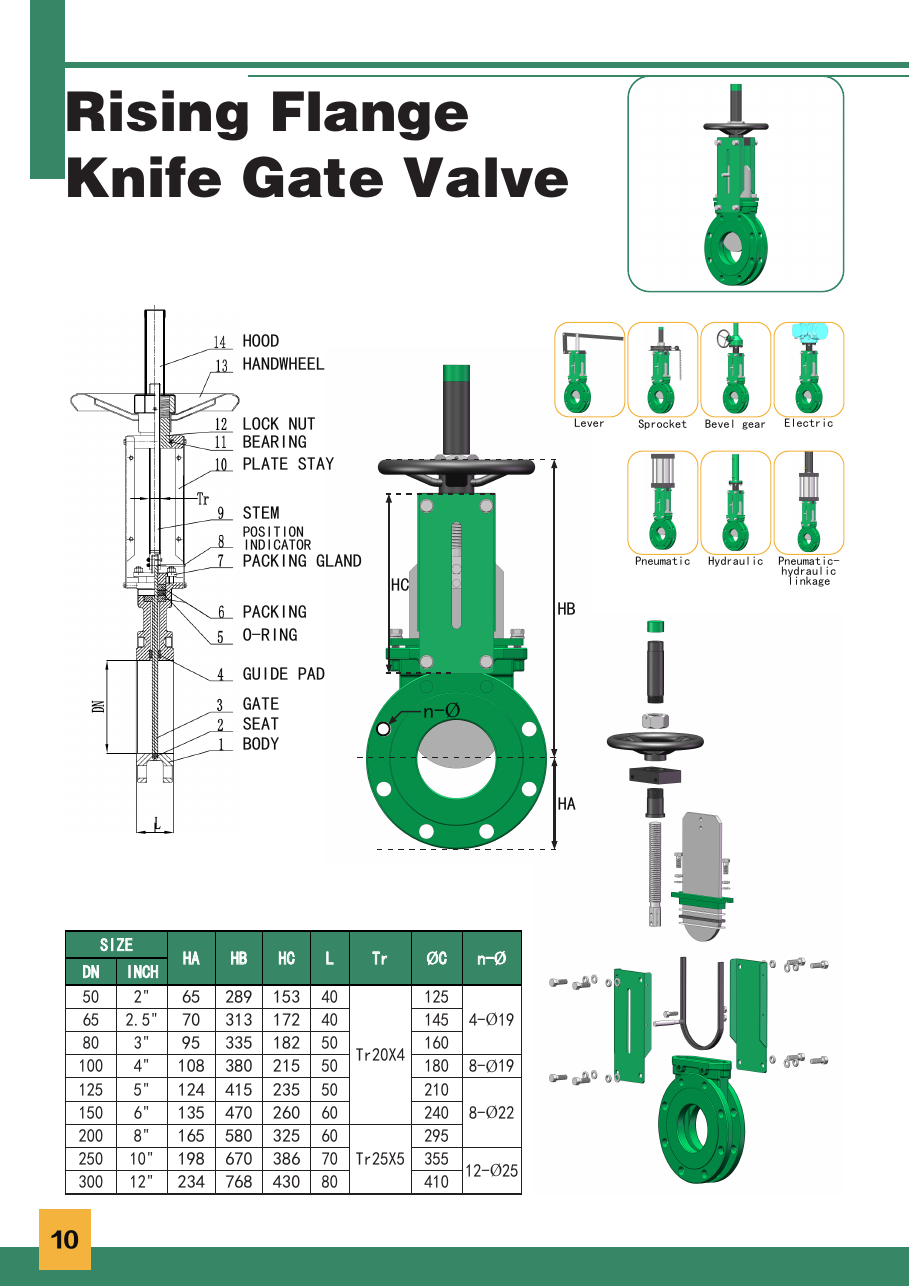

Rising Flange Knife Gate Valve from WENZHOU KGV VALVE CO., LTD. Rising flange knife gate valve configuration with flange drilling dimensions shown in the catalog.
SS Rising Unidirectional Knife Gate Valve from WENZHOU KGV VALVE CO., LTD. Stainless-steel rising unidirectional knife gate valve configuration listed in the KGV catalog.
Rising Unidirectional Knife Gate Valve from WENZHOU KGV VALVE CO., LTD. Rising stem, unidirectional shut-off design for slurry, pulp, mining and general industrial service.
Rubber Liner Knife Gate Valve from WENZHOU KGV VALVE CO., LTD. Rubber-lined knife gate valve configuration for abrasive or slurry-oriented process applications.

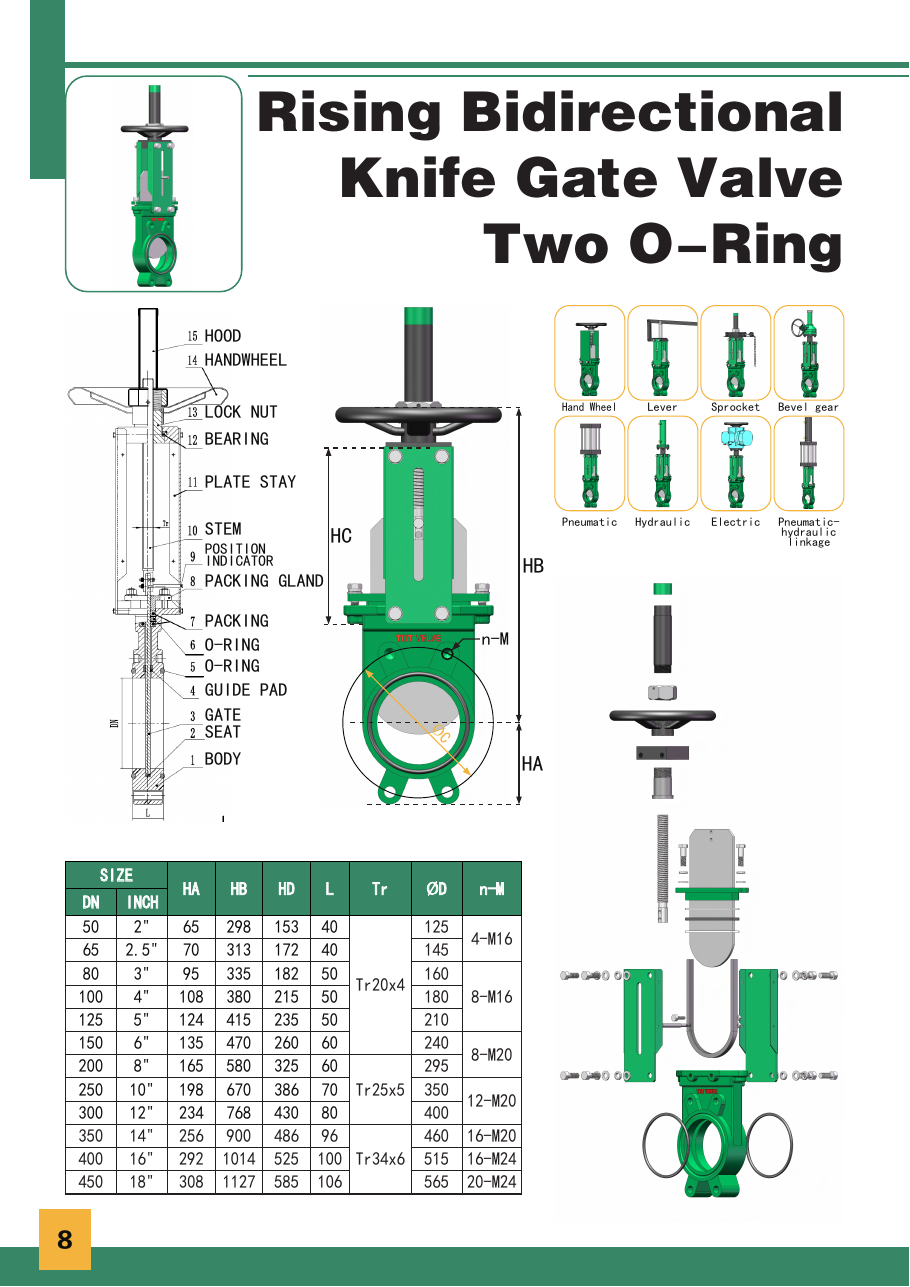

Two O-Ring Rising Bidirectional Knife Gate Valve from WENZHOU KGV VALVE CO., LTD. Rising bidirectional knife gate valve with a two O-ring sealing arrangement identified in the catalog.
For an accurate quotation, include DN/size, medium, pressure, temperature, connection standard, quantity and actuator requirement.
